LEGO ROTARY INVERTED PENDULUM

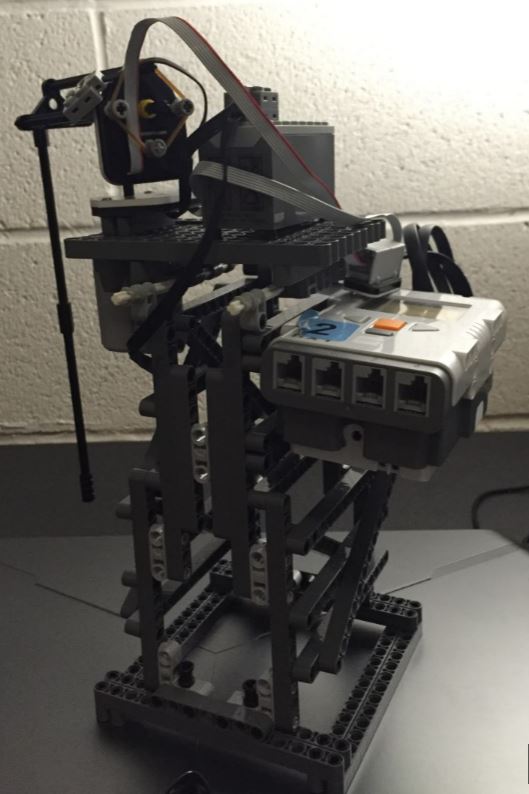

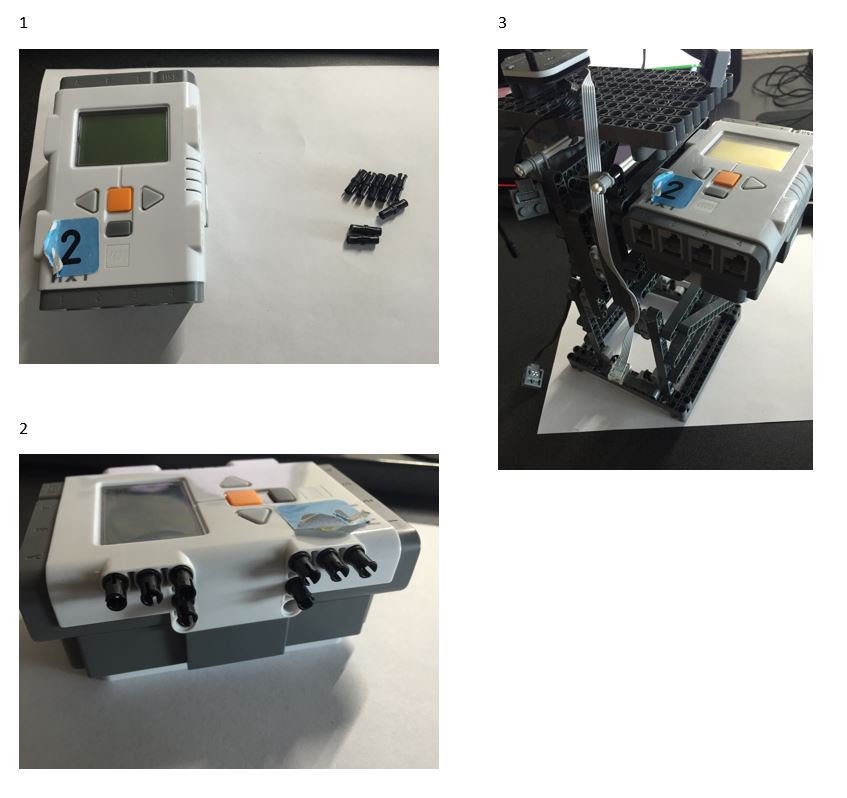

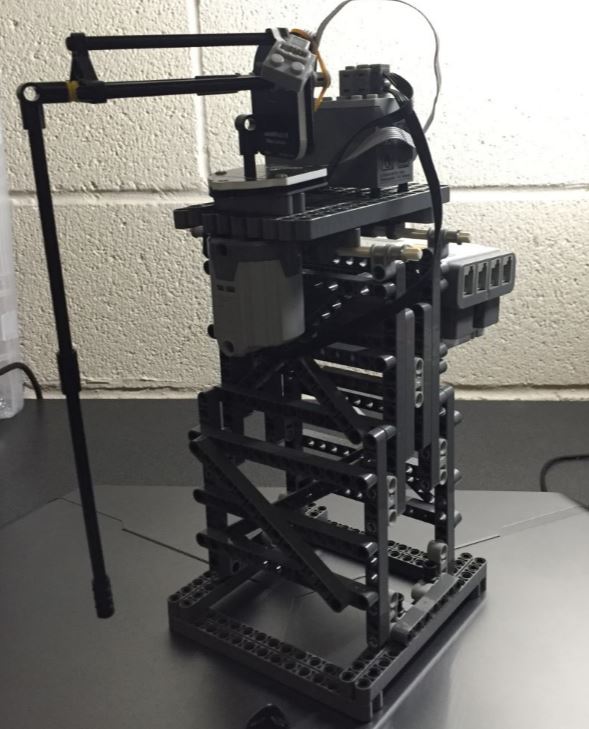

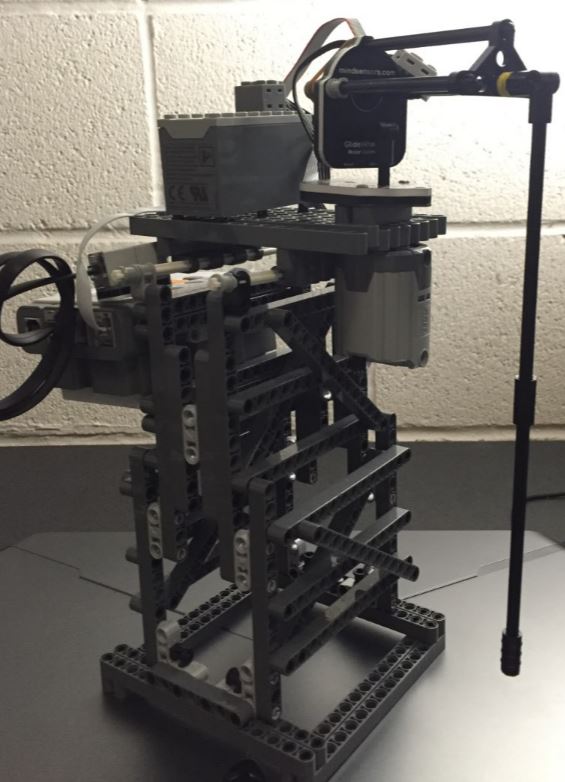

This step-by-step building instructions to construct the rotary inverted pendulum was using a Lego Rechargeable battery box , but the system can work without problem connecting the GlideWheel sensors directly to the NXT Brick to use its power , so the battery box is optional.

---

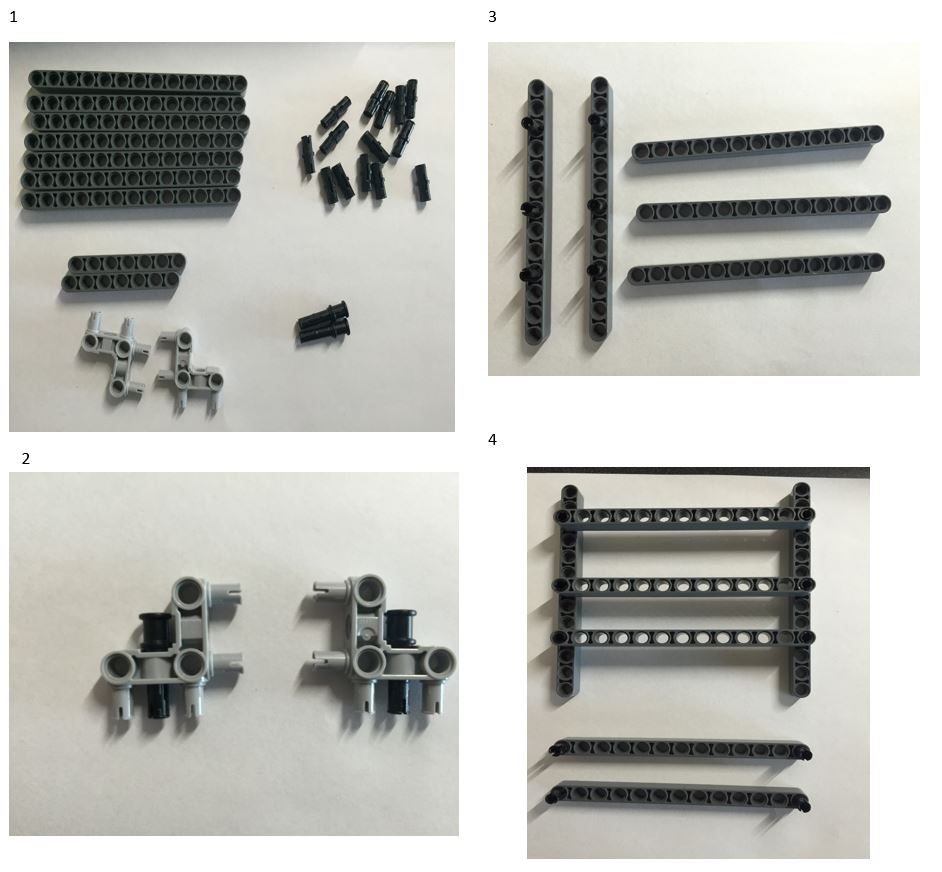

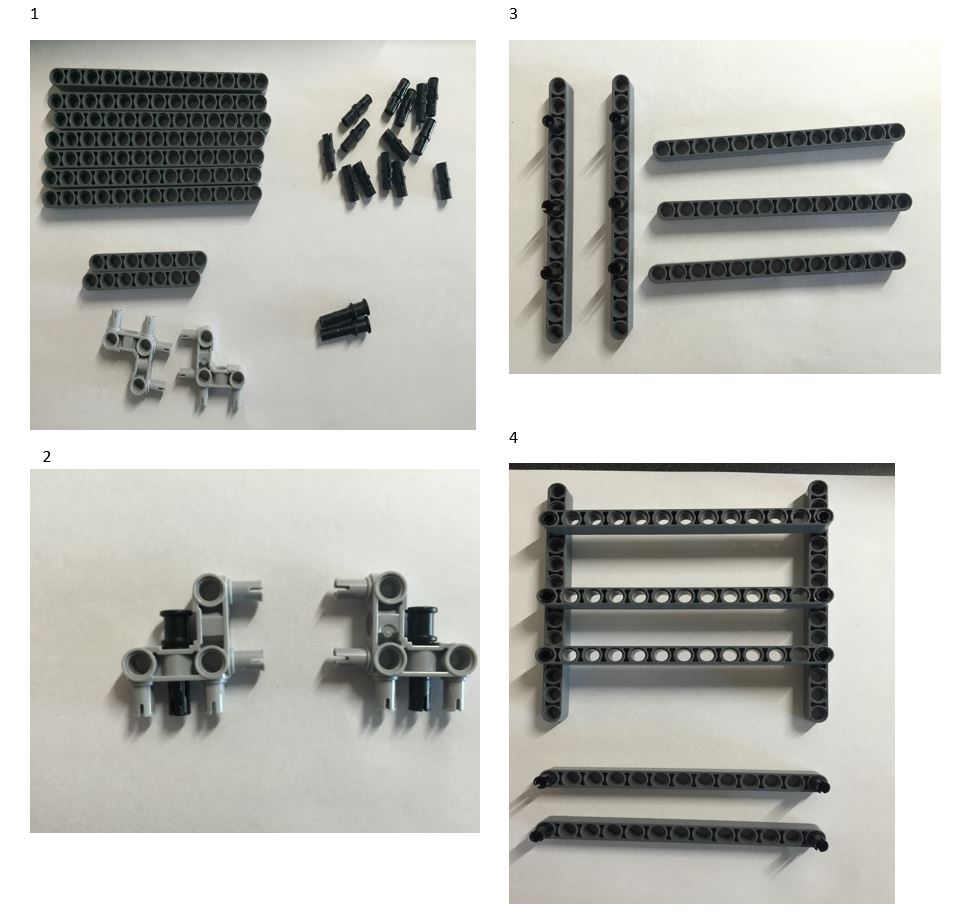

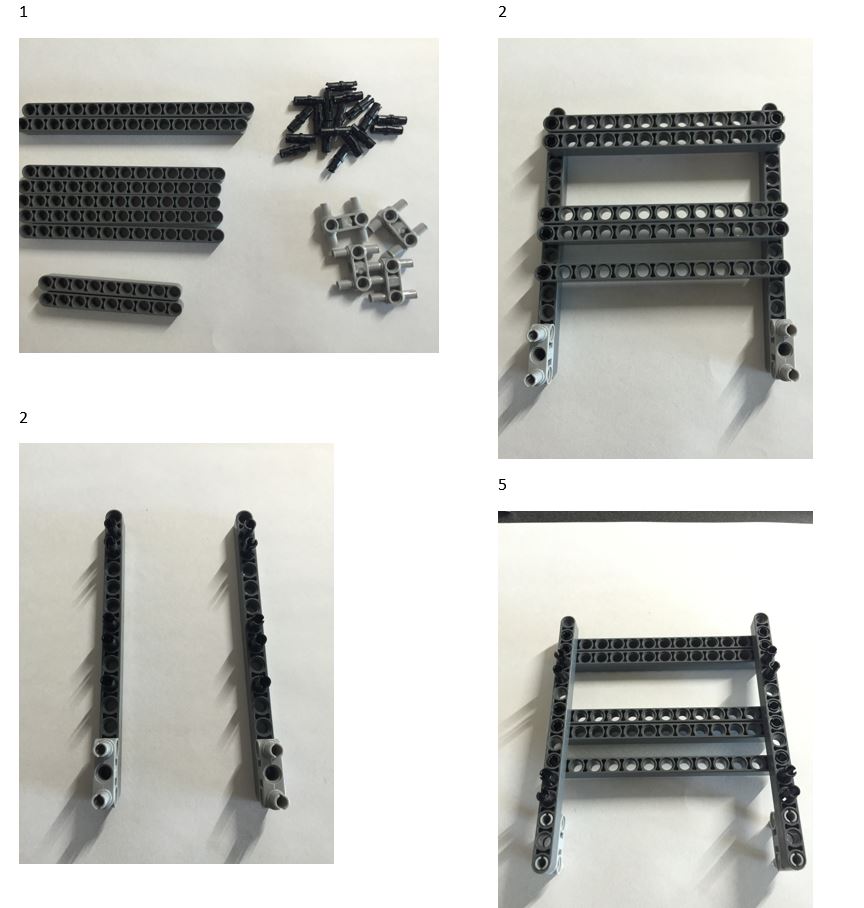

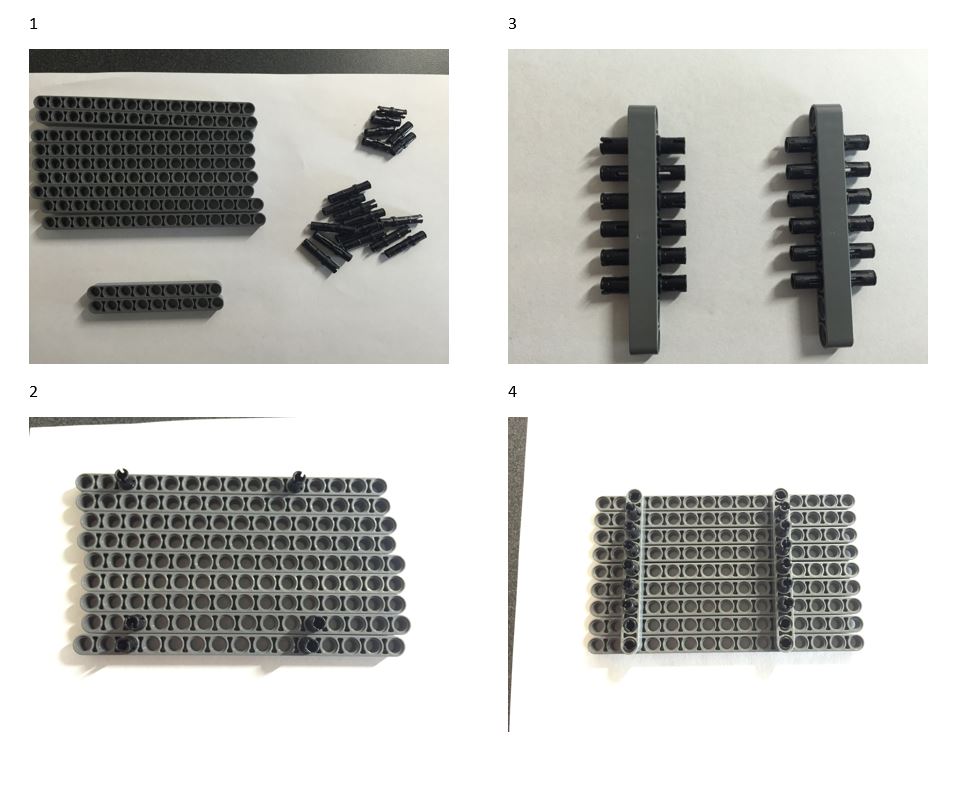

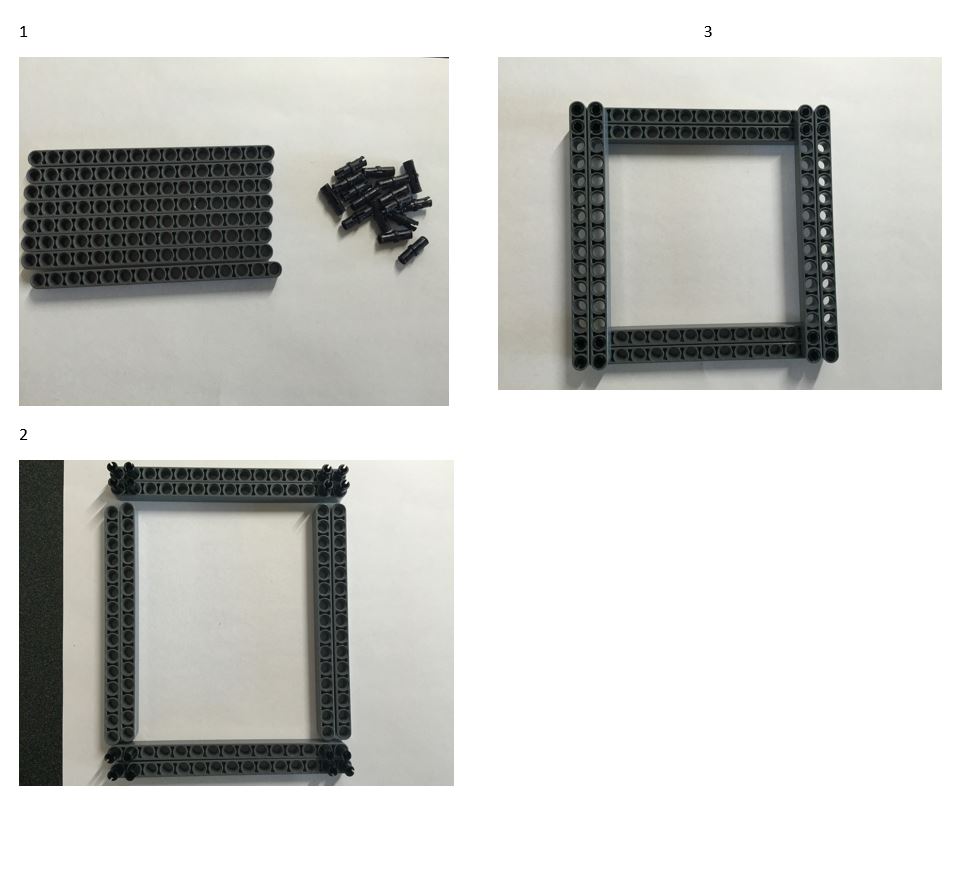

STEP1

• 8x Technic 15M Beam
• 16x Connector Peg W. Friction

---

STEP2

• 7x Technic 13M Beam
• 2x Technic 7M Beam
• 14x Connector Peg W. Friction
• 2x Angular Beam 90Degr. W.4 Snaps
• 2x Connector Peg W. Friction 3M

---

STEP3

• 7x Technic 13M Beam
• 14x Connector Peg W. Friction
• 2x Angular Beam 90Degr. W.4 Snaps
• 2x Connector Peg W. Friction 3M

---

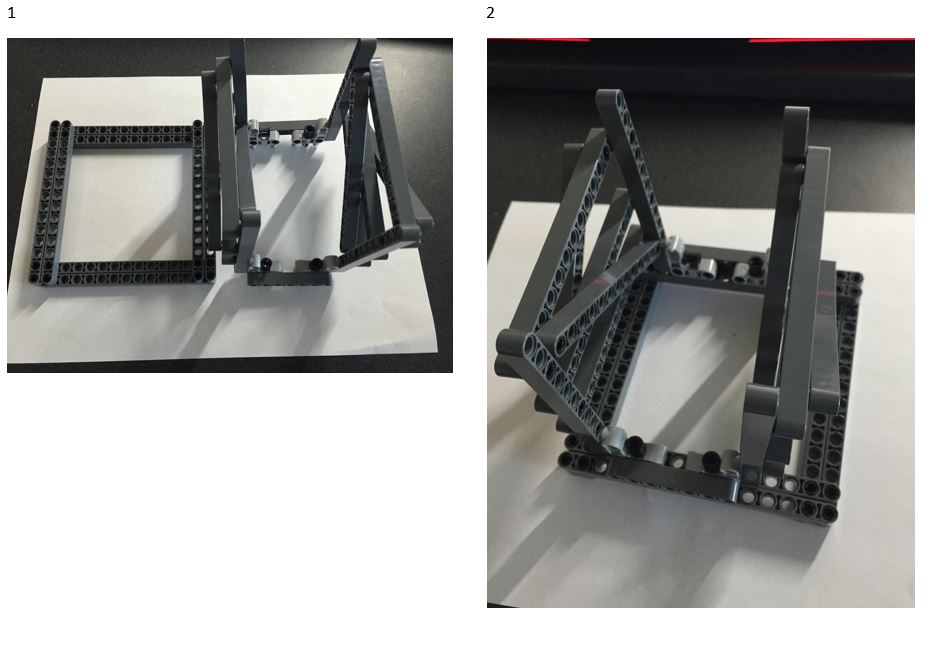

STEP4

---

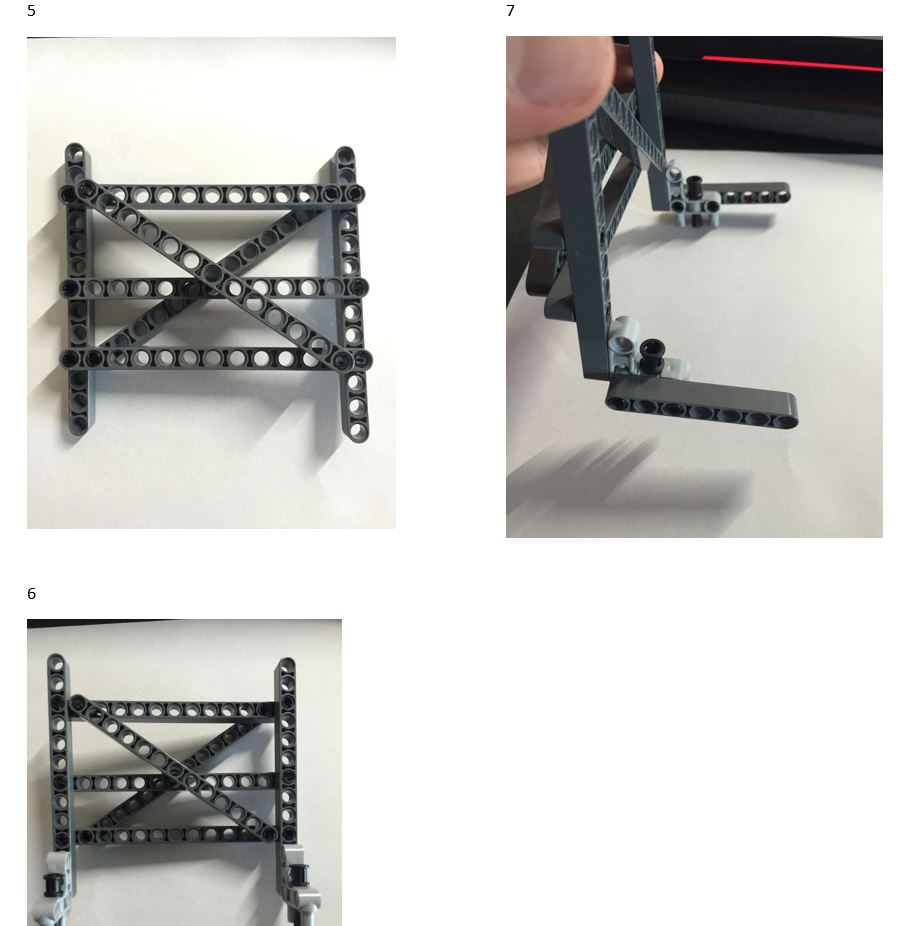

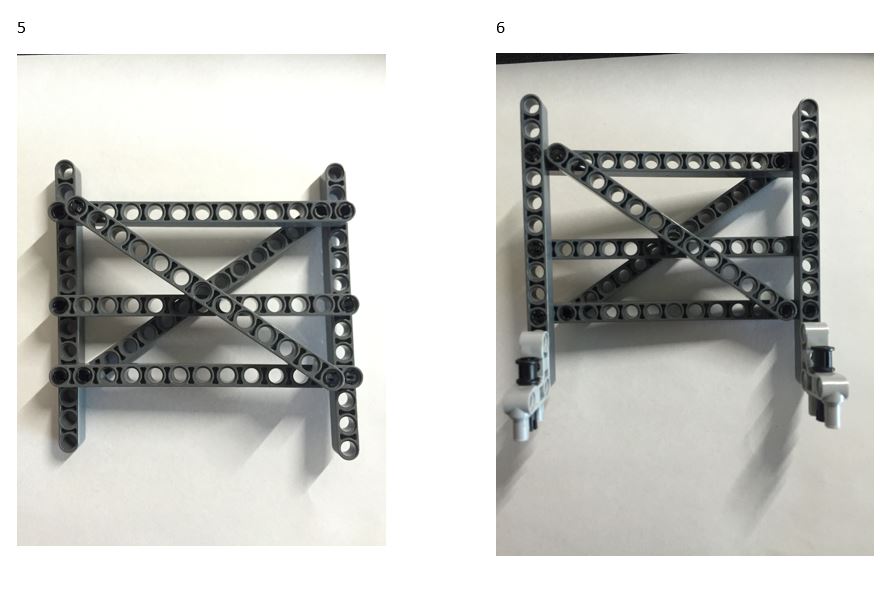

STEP5

---

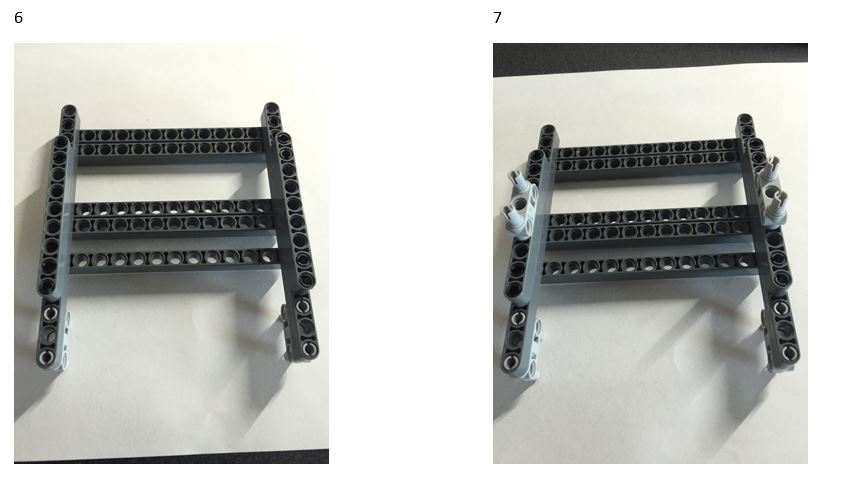

STEP6

• 2X Technic 15M Beam
• 5X Technic 13M Beam
• 2X Technic 9M Beam
• 2X Beam 3 M. W/4 Snaps
• 18X Connector Peg W. Friction

---

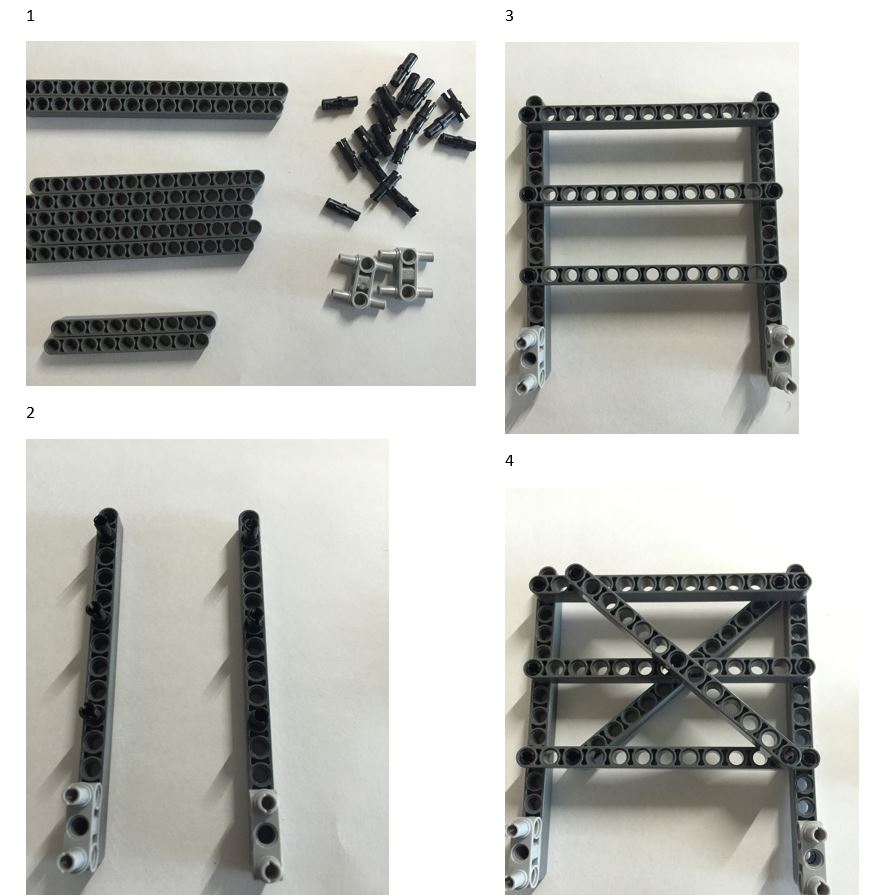

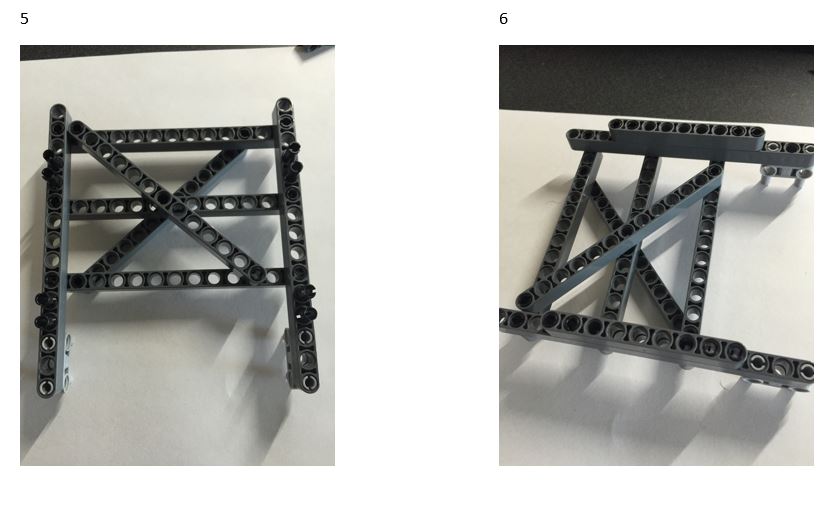

STEP7

• 2X Technic 15M Beam
• 5X Technic 13M Beam
• 2X Technic 9M Beam
• 4X Beam 3 M. W/4 Snaps
• 18X Connector Peg W. Friction

---

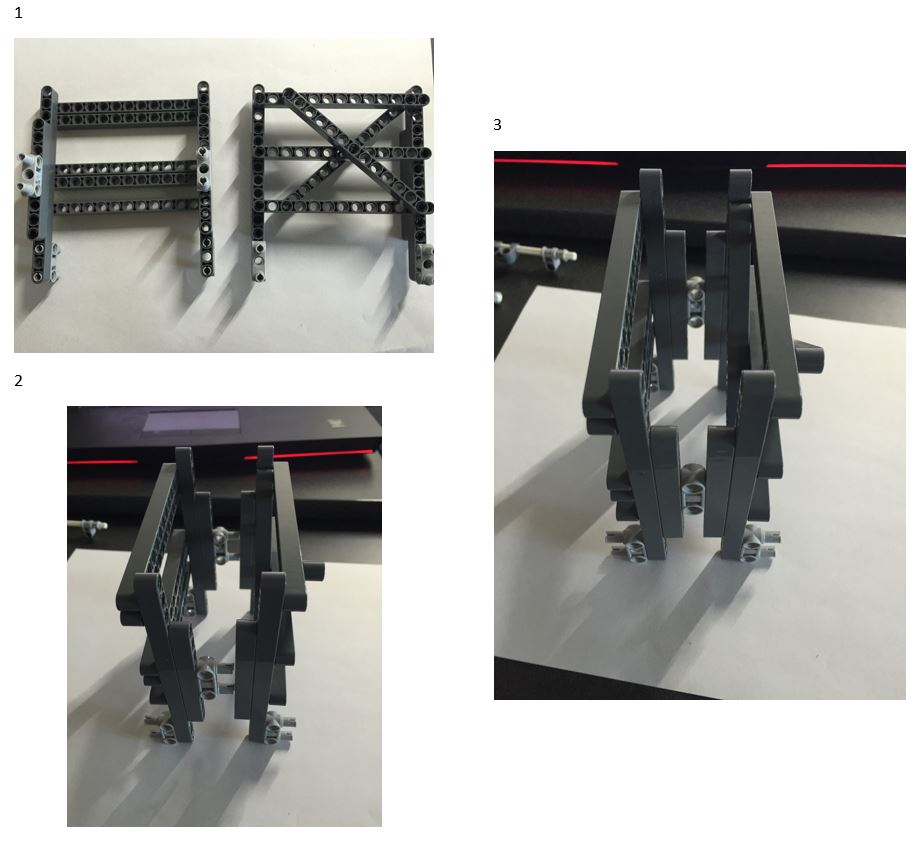

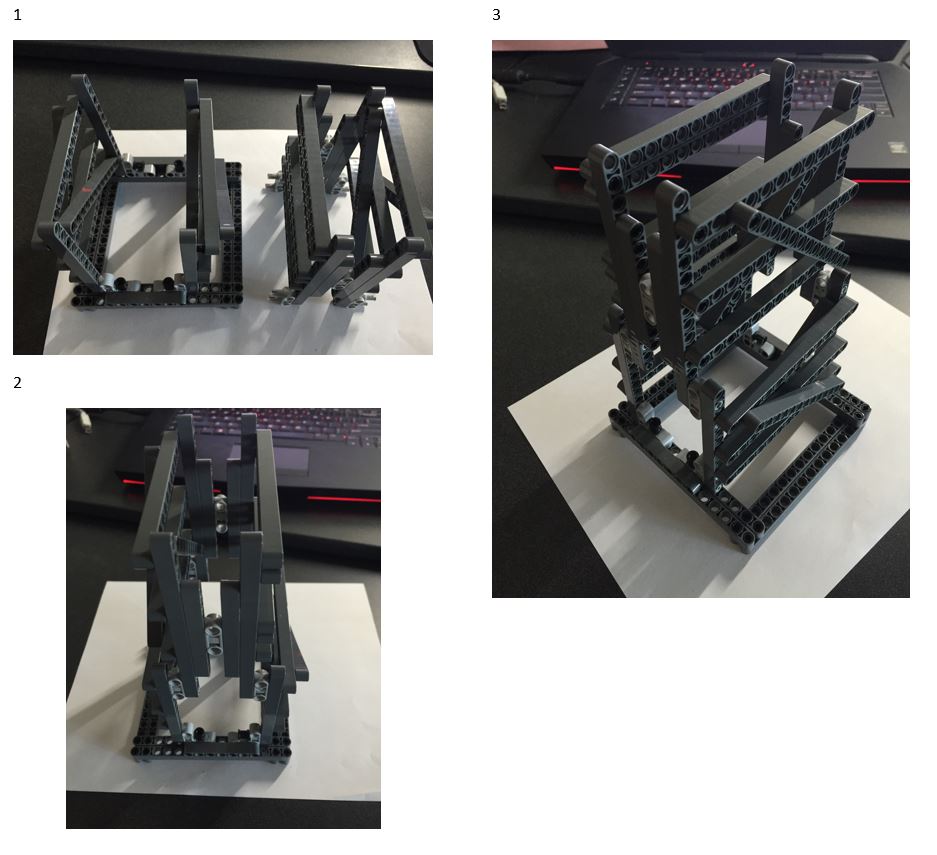

STEP8

---

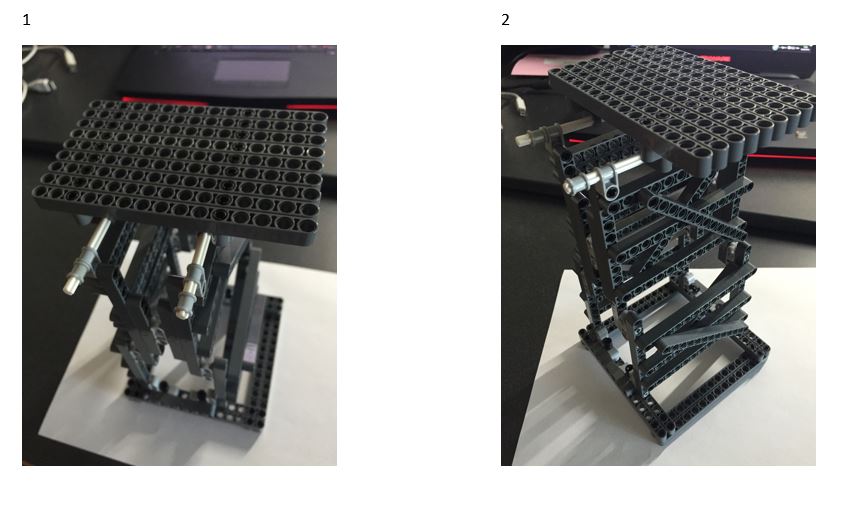

STEP9

---

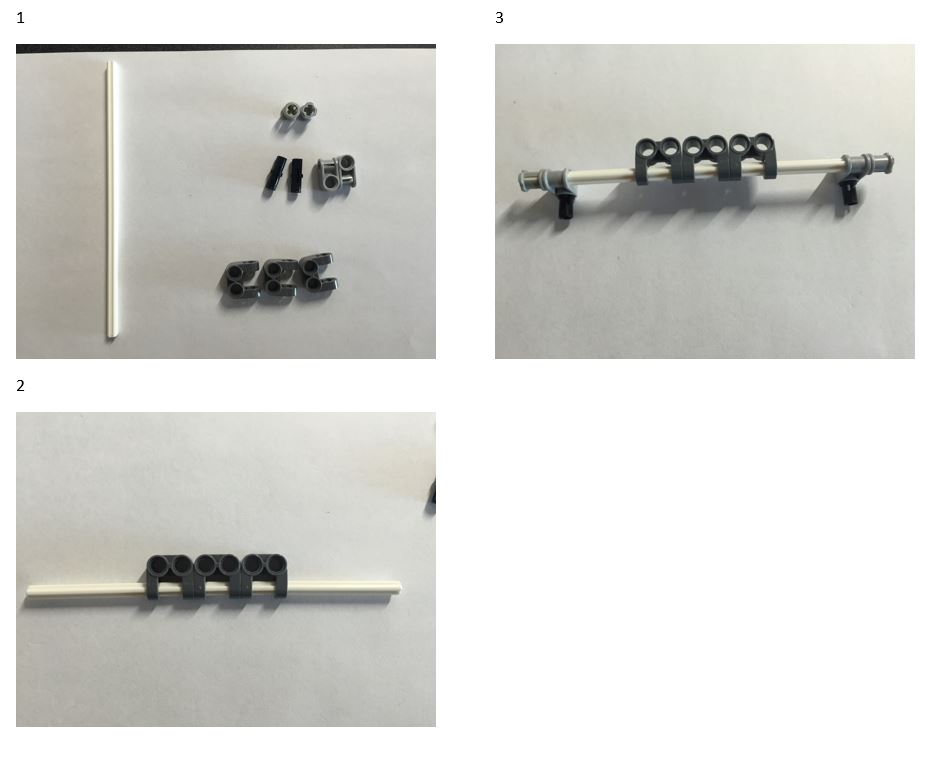

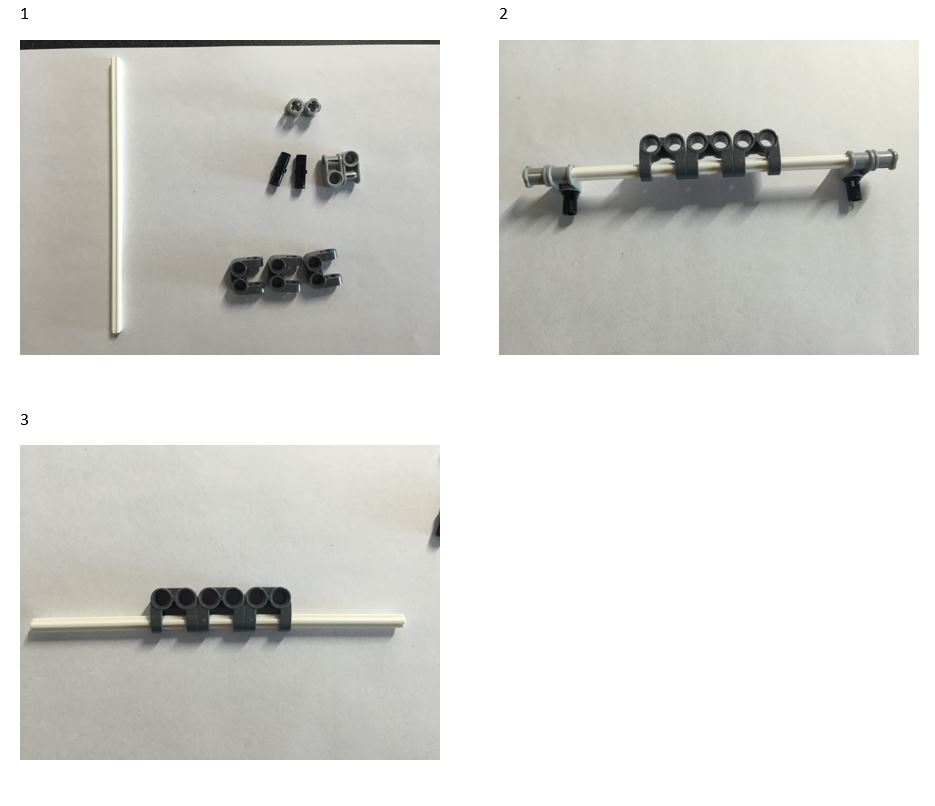

STEP 10

• 1x Cross Axle 32M
• 2x Bush
• 2x Connector Peg W. Friction
• 2x Cross Block, 90 degrees
• 3x Technic Cross Block/Fork 2×2

---

STEP 11

• 1x Cross Axle 32M
• 2x Bush
• 2x Connector Peg W. Friction
• 2x Cross Block, 90 degrees
• 3x Technic Cross Block/Fork 2×2

---

STEP 12

---

STEP 13

• 9x Technic 15M Beam
• 2x Technic 9M Beam
• 6x Connector Peg W. Friction
• 12x Connector Peg W. Friction 3M

---

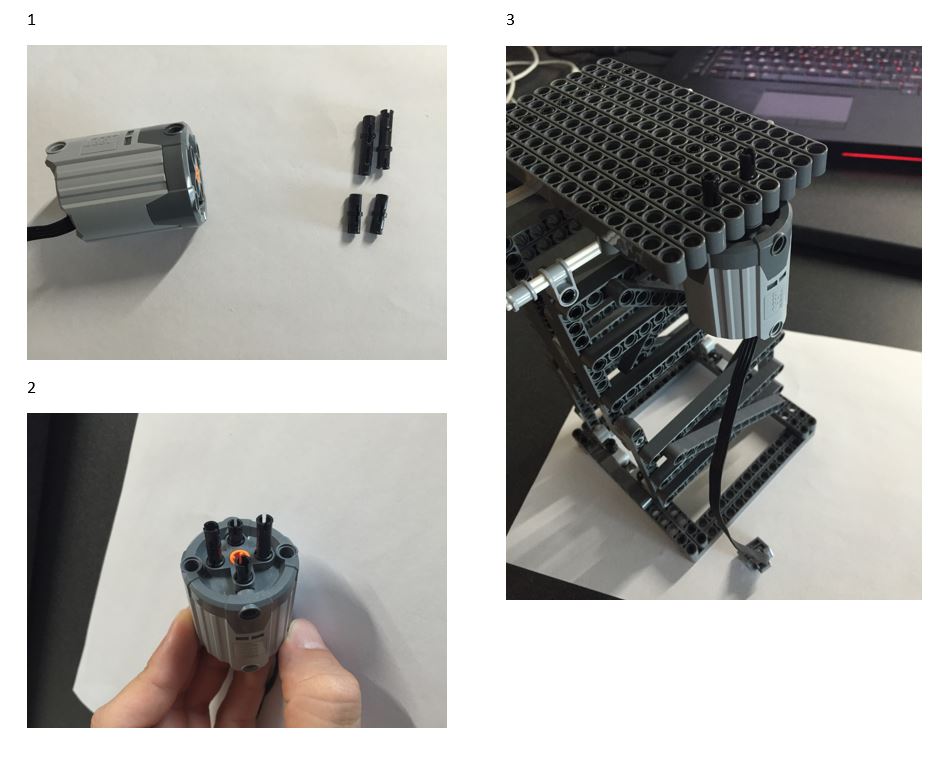

STEP 14

---

STEP 15

• 1x Power Function XL-Motor
• 2x Connector Peg W. Friction
• 2x Connector Peg W. Friction 3M

---

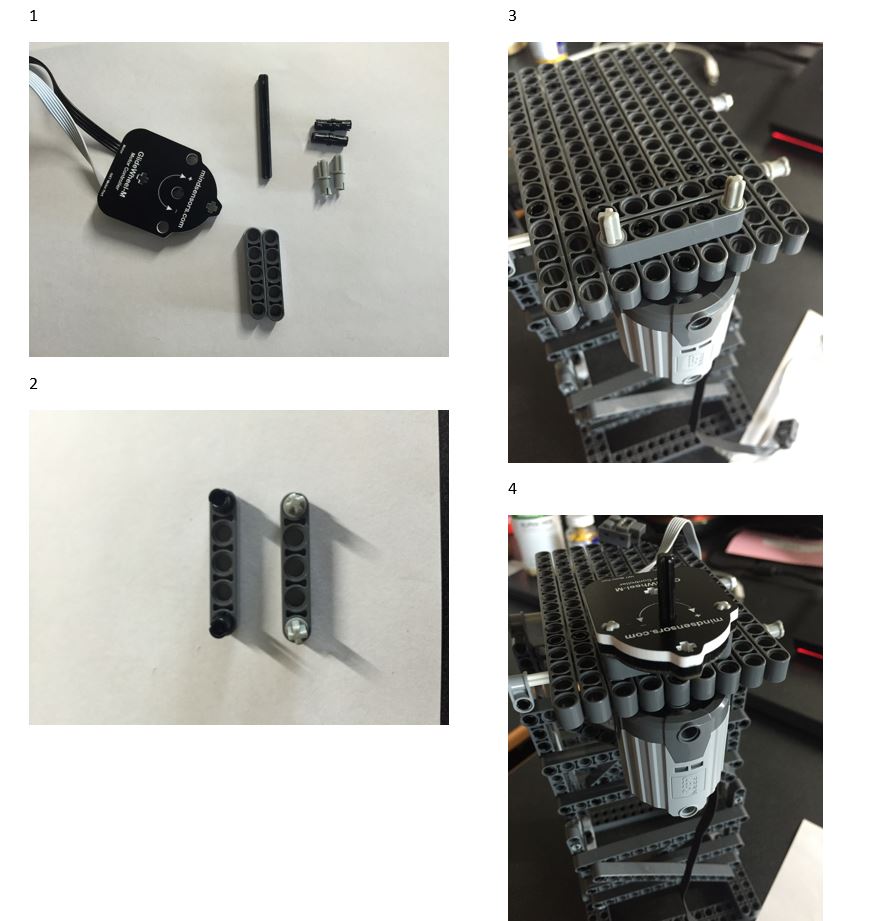

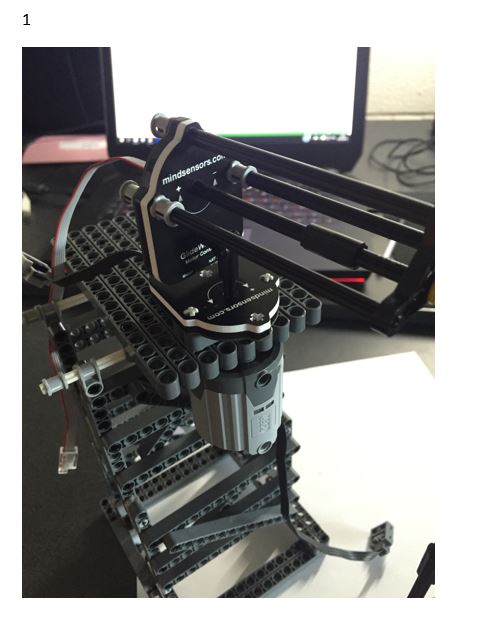

STEP 16

• 1x GlideWheel PF W/ motor Controller
• 1x Cross Axle 6M
• 2x Connector Peg W. Friction
• 2x Connector Peg/Cross Axle
• 2x Technic 5M Beam

---

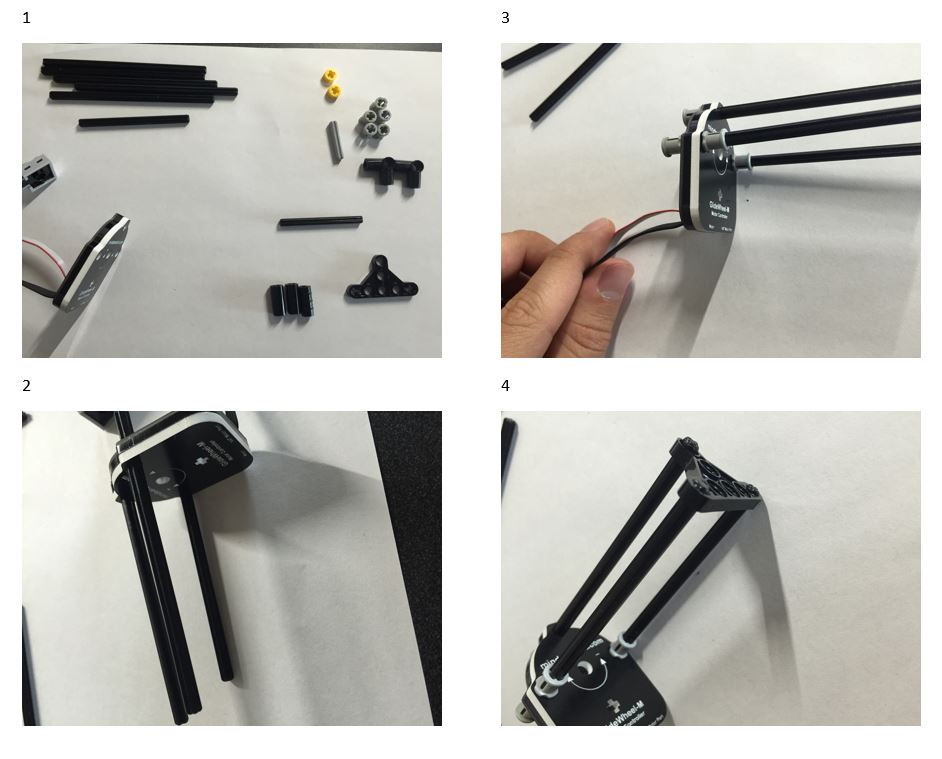

STEP 17

• 2x Angle Element, 90 degrees
• 2x Cross Axle, Extension, 2M
• 1x Cross Axle, Extension M/3 Ribs
• 1x Cross Axle 3M
• 2x Cross Axle 6M
• 5x Cross Axle 12M
• 1x Triangle
• 5x Bush
• 2x ½ Bush

---

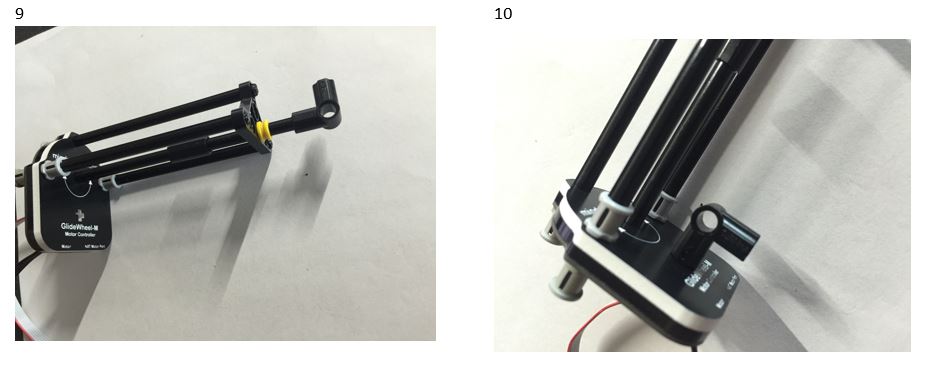

STEP 18

---

STEP 19

• 8x Connector Peg W. Friction

---

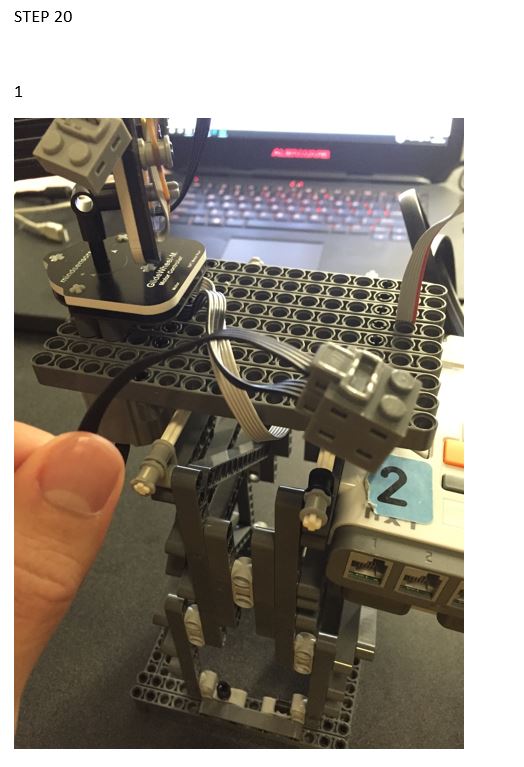

STEP 20

---

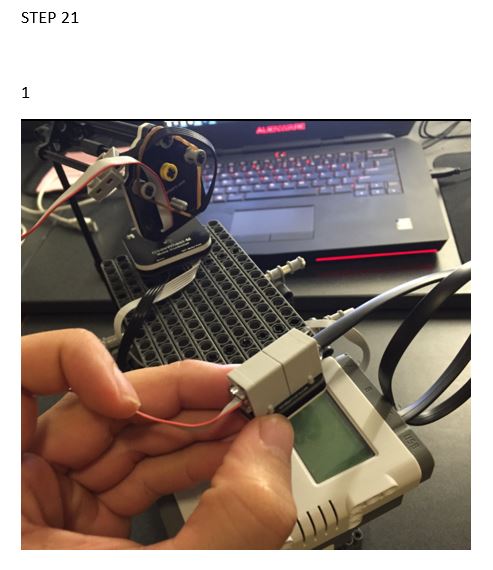

STEP 21

---
