How to Use Darwin OP 2's Computer Vision

Author: Yu Hang He Email:
Date: Last modified on <11/19/17>
Keywords: Darwin OP 2, C++/C Programming, Robotis OP 2, Computer Vision

This tutorial will demonstrate how to use vision processing capability on Darwin OP 2 to detect and track color. Darwin OP 2 have computer vision that can detect multiple colors and return x and y center position of those colors. A second class will move camera to keep track of color based on x and y position. It takes approximately 2 hours to complete.

Motivation and Audience

This tutorial's motivation is to demonstrate how to use computer vision on Darwin OP 2. This tutorial assumes the reader has the following background and interests:

  • Familiar with handling Darwin OP 2
  • Familiar with C++/C programming language
  • Familiar with C++/C codes on Darwin OP 2
  • Interested in computer vision

The rest of this tutorial is presented as follows:

Color Detection

The core of image processing on Darwin OP 2 is ColorFinder class. ColorFinder can find the center of mass of detected color and return its location. There is a tutorial on Robotis' online manual that can provide more insights.

ColorFinder class requires 5 input color parameters: hue, tolerance, minimum saturation, minimum value, gain, and exposure. To find the most accurate set of values for the color you want to detect, use the color_filtering program on Darwin OP 2.

Use terminal and go to directory /robotisop2/Linux/project/tutorial/color_filtering

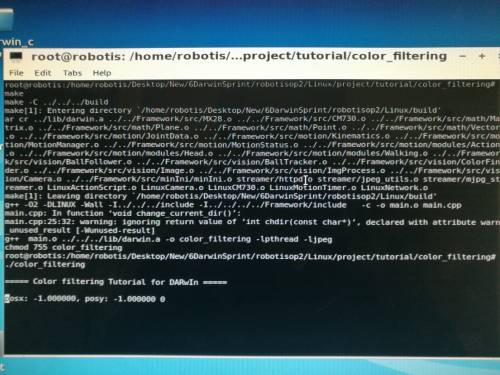

Type in make and execute the program ./color_filtering.

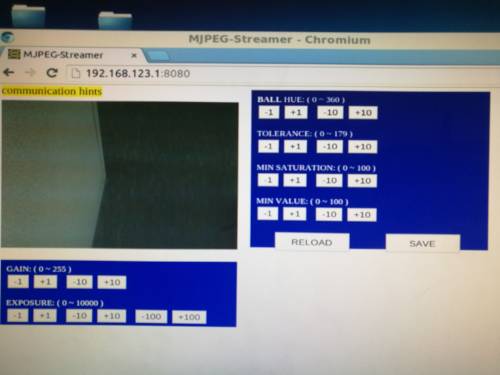

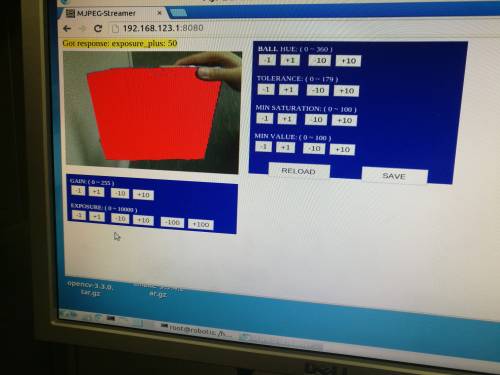

Once the program is running, open web browser and type in the address

Now you can adjust the values until Darwin OP 2 properly detect your color.

In this example, I am trying to detect a blue color.

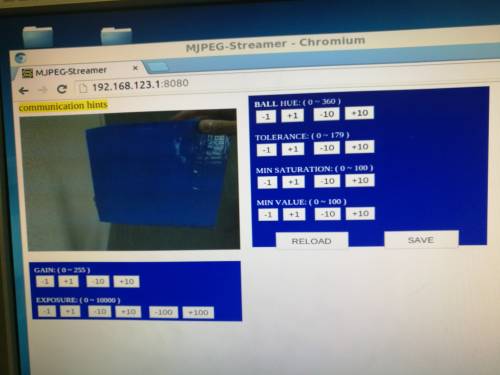

Before adjustments


The adjusted values are:

  • Hue: 225
  • Tolerance: 15
  • Minimum Saturation: 45
  • Minimum Value: 0
  • Gain: 0.3
  • Exposure: 50.0


This tutorial will demonstrate how to create a new ColorFinder object and how to use it. Only show parts of code that has been modifed.

main.cpp can be found under directory /robotisop2/Linux/project/demo

| main.cpp
//declare a new object of class ColorFinder
ColorFinder* finder = new ColorFinder();
//you can initiate the object with 5 input color parameters
ColorFinder* green_finder = new ColorFinder(120, 45, 35, 0, 0.3, 40.0);
//There are default values of color you can load from ini file. Example
finder->LoadINISettings(ini, "RED");
//To get the position of center of mass of filtered pixels
Point2D pos;
pos = finder->GetPosition(LinuxCamera::GetInstance()->fbuffer->m_HSVFrame);
//first declare an object of class Point2D
//then set it equal to GetPosition function of ColorFinder object

Camera Tracking

Camera tracking can be accomplished through BallTracker class. An object of this class receive a Point2D object as input, then internally calculate pan and tilt motor movements in Darwin OP 2's head to keep track of position. There is a tutorial on Robotis' online manual that may provide more insight.

The goal of this demonstration is for Darwin OP 2 to keep track of center of blue and green color. In this demonstration, I created two ColorFinder objects, green_finder and blue_finder, to find the center of mass of its respective colors. Furthermore, I created two Point2D objects, green and blue, to keep track of position of colors. Finally, I used a third Point2D object, center, to store the average between green and blue position.


directory /robotisop2/Linux/project/demo
This section will only show parts of code that has been modified.

| main.cpp
//inside main loop
int main() {
    ColorFinder* green_finder = new ColorFinder(120, 45, 35, 0, 0.3, 40.0);
    ColorFinder* blue_finder = new ColorFinder(225, 15, 45, 0, 0.3, 50.0);
    //created 2 new ColorFinder objects to find color green and blue
    BallTracker marker_tracker = BallTracker();
    //created a new BallTracker object to use camera tracking
//inside while loop
while(1) {
else if(StatusCheck::m_cur_mode == SPRINT) //under a new mode called Sprint
    Point2D green, blue, center;
    //created 3 objects of Point2D class
    green = green_finder->GetPosition(LinuxCamera::GetInstance()->fbuffer->m_HSVFrame);
    blue = blue_finder->GetPosition(LinuxCamera::GetInstance()->fbuffer->m_HSVFrame);
    //store position of green and blue color
    if(green.X < 0 || blue.X < 0)
        center.X = -1;
        center.X = (green.X + blue.X)/2;
    if(green.Y < 0 || blue.Y < 0)
	center.Y = -1;
        center.Y = (green.Y + blue.Y)/2;
    //calculate center of blue and green
    //use camera tracking

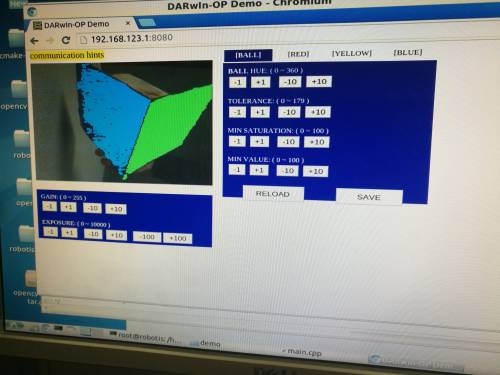

In this demonstration, I used camera track the center between green and blue colors.

First I used color_filtering to find 5 input parameters for green and blue colors.

Then, followed the step outlined in the program section and implemented it within a new mode.
Here is the result.

Final Words

This tutorial's objective was to demonstrate how to use camera tracking and color detection on Darwin OP 2.

For questions, clarifications, etc, Email:
